THISION® L PLUS

Condensing gas boilers
Outputs from 60kW to 200kW
The condensing gas boilers in the THISION® L PLUS product range are the result of extensive research and development as well as the use of the highest quality components. This results in a unique boiler design with two heat exchangers that can work independently of each other. This new condensing boiler is not only technically excellent, but was primarily developed for easy operation and maintenance. The THISION® L PLUS offers an absolute PLUS in every respect for all commercial and local authority applications.


SUSTAINABLE FUTURE-PROOF TECHNOLOGY

SUSTAINABLE FUTURE-PROOF TECHNOLOGY

The stainless steel heat exchanger used with patented HEX3 technology guarantees even heat transfer, consistent efficiency and low emissions. At the same time, the three combustion zones that characterise HEX3 technology reduce NOx and CO pollutant levels.

BUILT-IN BACK-UP

BUILT-IN BACK-UP

The THISION® L PLUS gas condensing boiler comes with a built-in cascade through the two independent heat exchangers in larger models and a modulation ratio of up to 1:10.

PLUG & PLAY

PLUG & PLAY

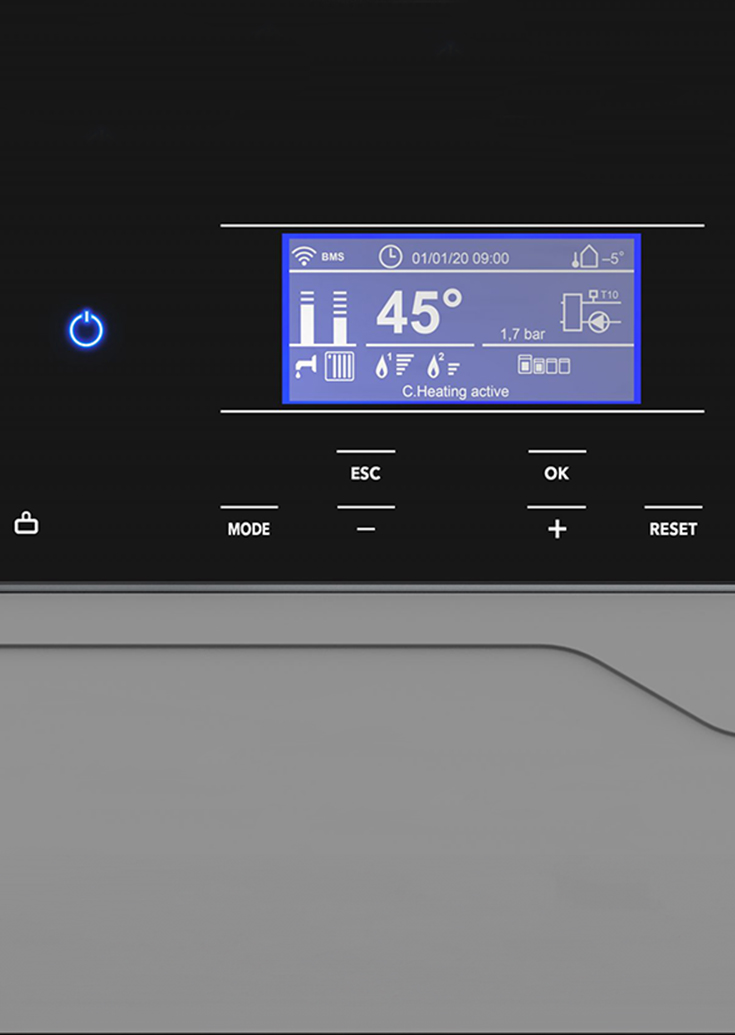

By integrating the main components within the boiler, such as the pumps and non-return valves, installation time, costs and space requirements are significantly reduced. Thanks to the technical design, all important components are accessible from the front. The control panel is located in the field of vision and a wide range of accessories make quick installation and commissioning very easy.

HIGH OUTPUT AND FLEXIBILITY

HIGH OUTPUT AND FLEXIBILITY

With cascades in series or back to back, THISION® L PLUS achieves impressive outputs of up to 1.6 MW. The versatile assembly and cascade solutions enable quick and easy installation, even in existing systems, thanks to the integrated components of the primary heating circuit.

LOW HEAT LOSS, LOW NOISE EMISSIONS

LOW HEAT LOSS, LOW NOISE EMISSIONS

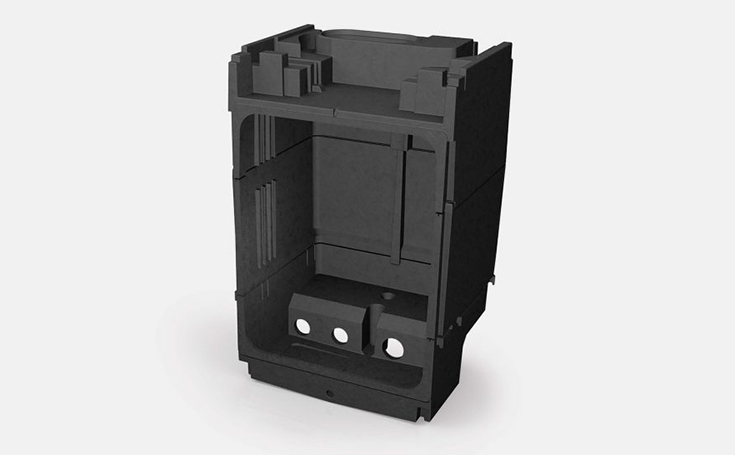

Fully polypropylene insulated boiler casing provides improved efficiency and quiet operation.



Form & Function

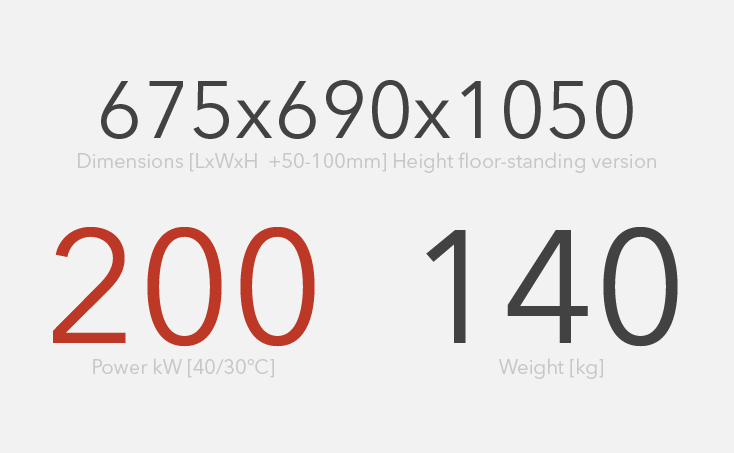

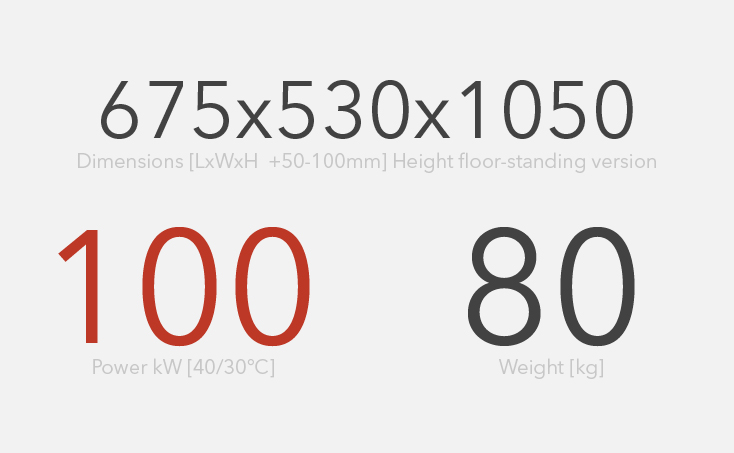

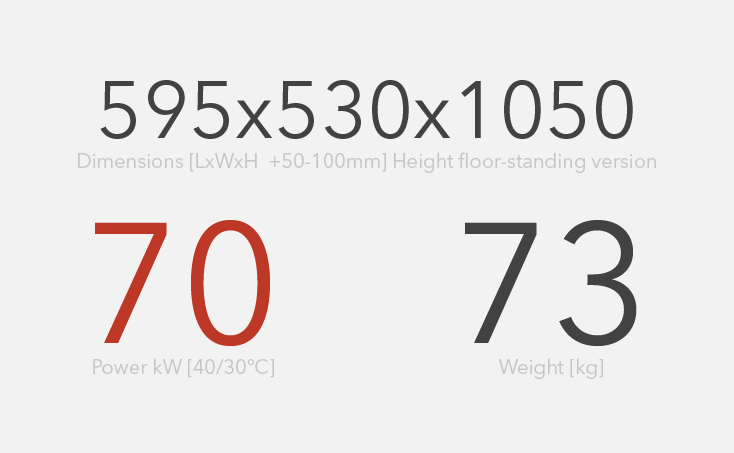

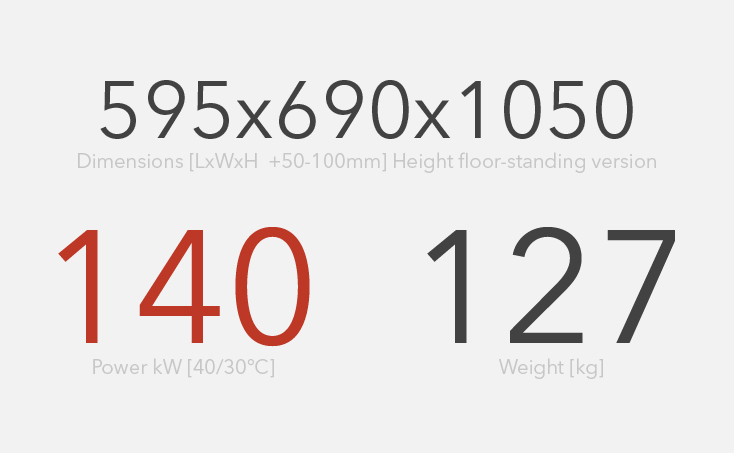

Because every single part of the THISION® L PLUS and TRIGON® L PLUS was developed for outstanding performance. Solutions from 60 kW up to 1,600 kW offer maximum flexibility. Compact, light and powerful. The new THISION® L PLUS is the most powerful wall-mounted gas condensing boiler, while the TRIGON® L PLUS is the most compact and lightest floor-standing gas condensing boiler in its class. And thanks to 14 different models (7 wall-mounted, 7 floor-standing) they are extremely versatile.



Cascade installations

Choose the right option based on your needs and local conditions:

Floor-standing

trigon l plus 49

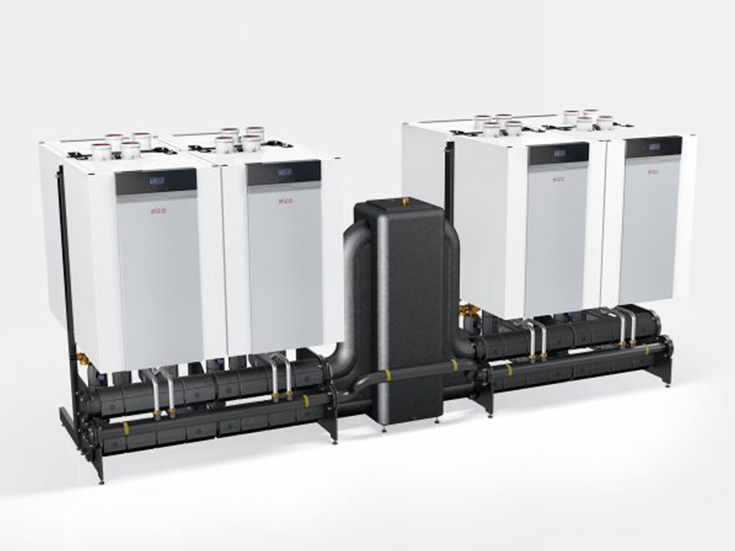

The TRIGON® L PLUS is incredibly flexible, available in either in-line or back-to-back configurations of up to eight boilers and delivering heat outputs of up to 1.6 MW. The versatile assembly and cascade solutions enable quick and easy installation, even in existing systems, thanks to the integrated components of the primary heating circuit.

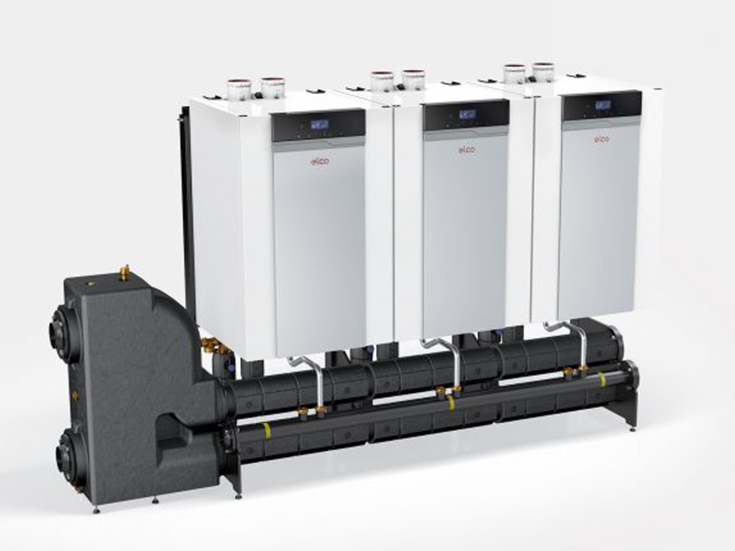

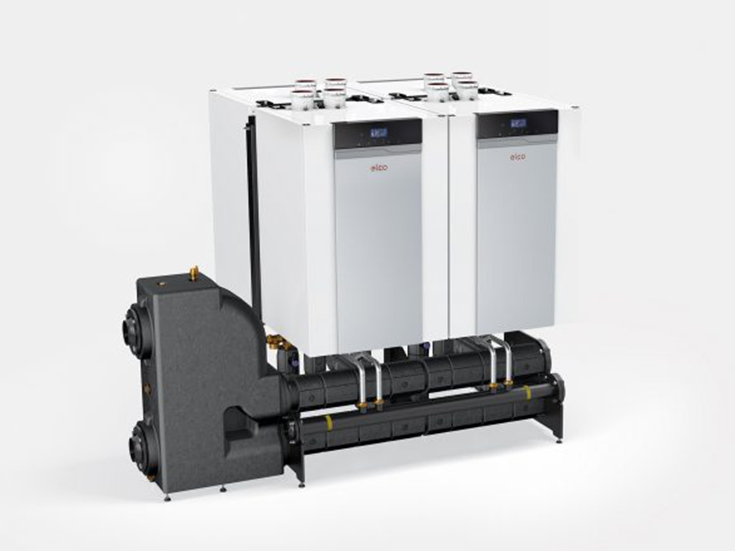

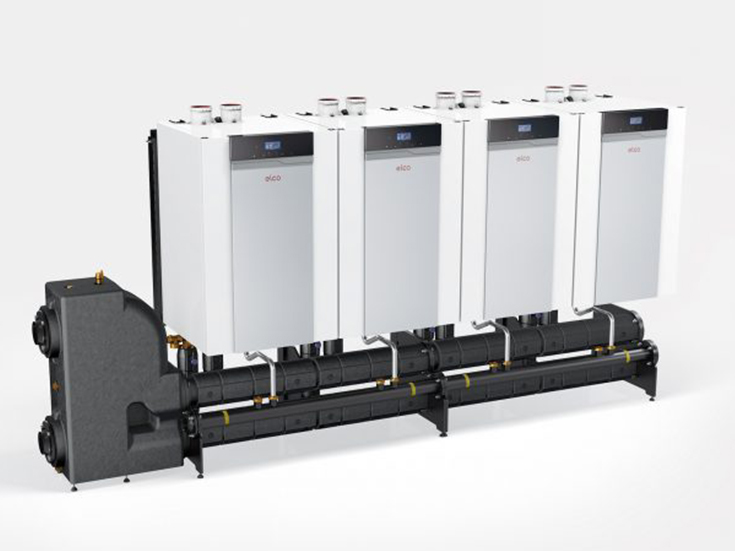

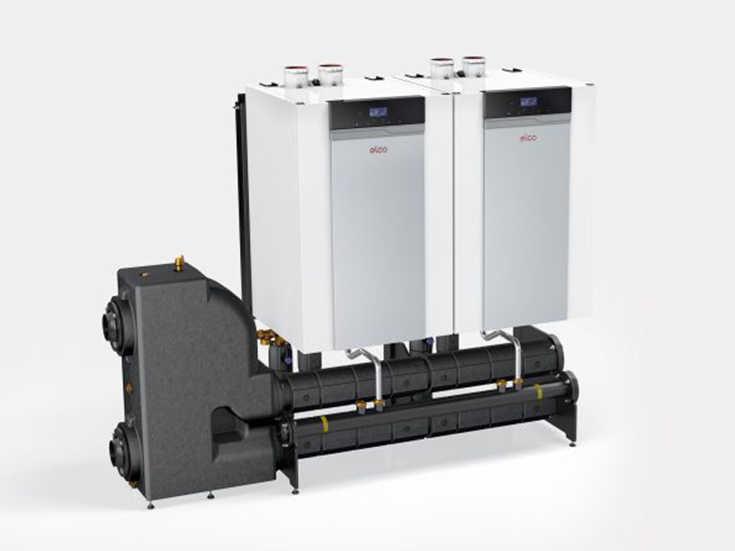

Wall-hung

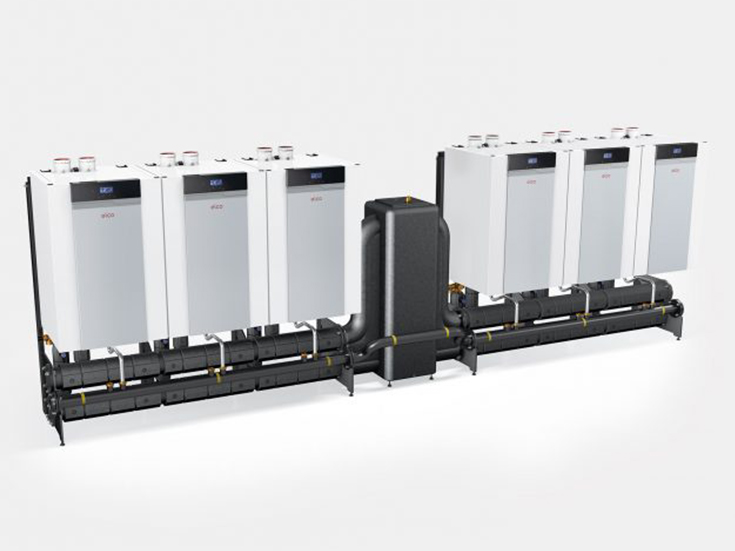

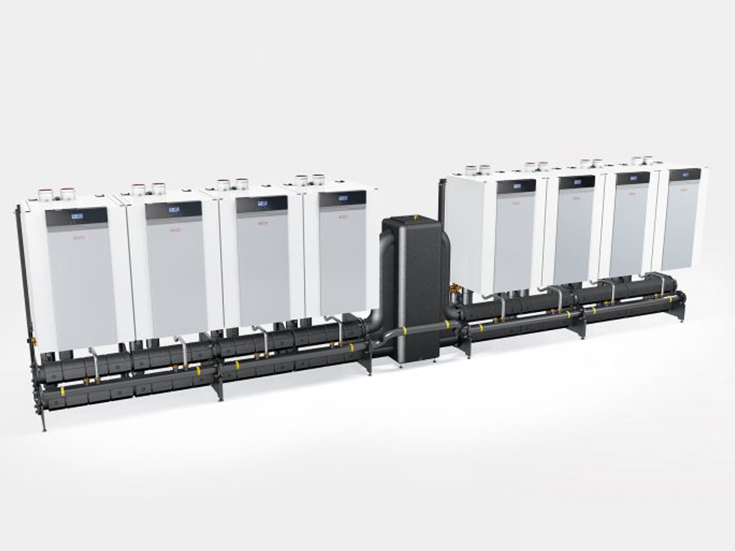

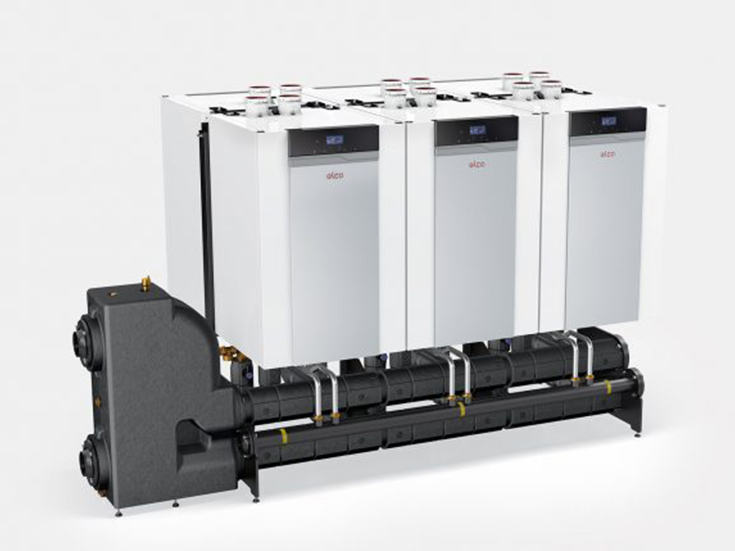

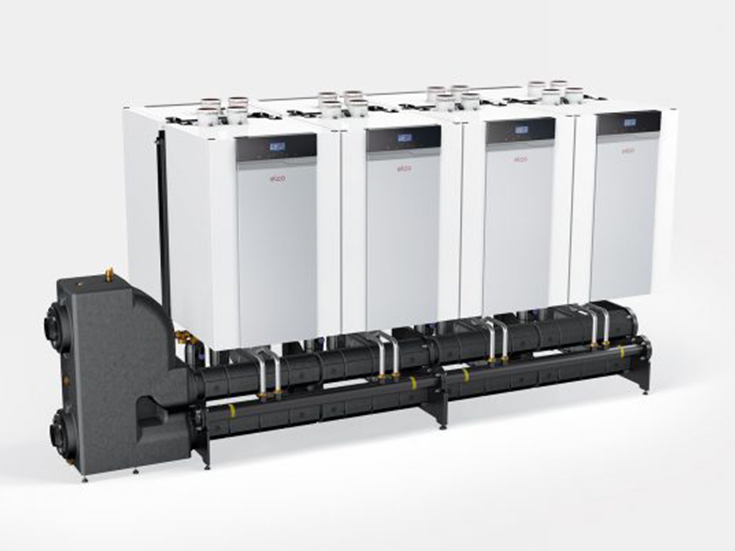

The THISION® L PLUS is incredibly flexible, available in either in-line or back-to-back configurations of up to eight boilers and delivering heat outputs of up to 1.6 MW. The versatile assembly and cascade solutions enable quick and easy installation, even in existing systems, thanks to the integrated components of the primary heating circuit.




Ready for Plug & Play

Thanks to the integrated pumps, set-up time is reduced and additional costs are eliminated. In addition, the boiler comes with a non-return valve and cascade manager already installed - ready for plug and play.
