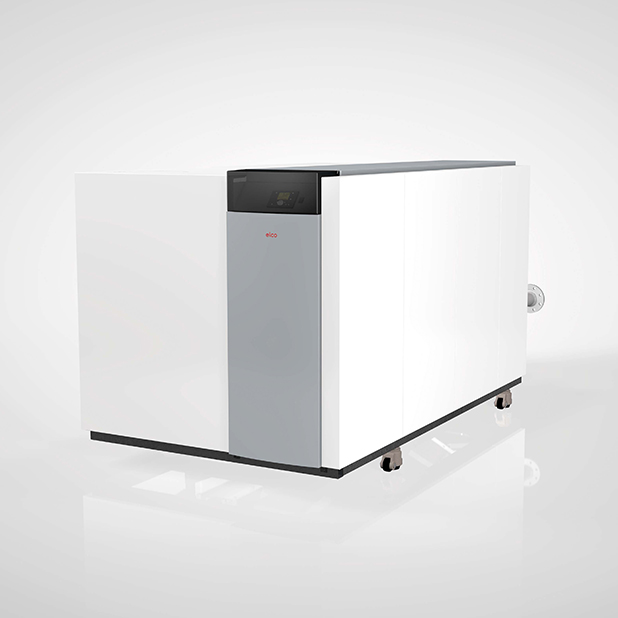

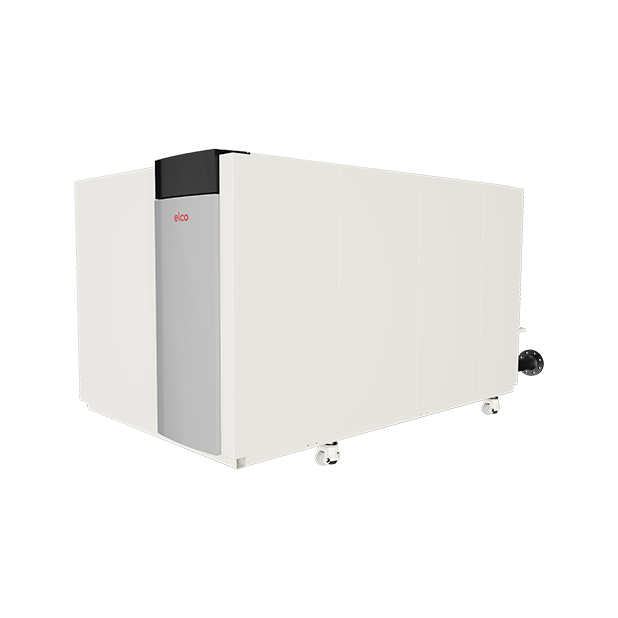

TRIGON® XXL

Condensing Boilers
Outputs from 700 kW to 2000 kW
The TRIGON® XXL offers unrivalled power and performance, delivering outputs up to 2 MW, thanks to a one-of-a-kind boiler design. By combining a unique heat exchanger geometry and a water-cooled cold flame burner, the TRIGON® XXL delivers class-leading performance for low NOx and CO. ELCO’s renowned modular design construction allows the TRIGON® XXL to be disassembled into components parts – providing flexibility when siting the boilers in a commercial property.



Extremely low emissions

Extremely low emissions

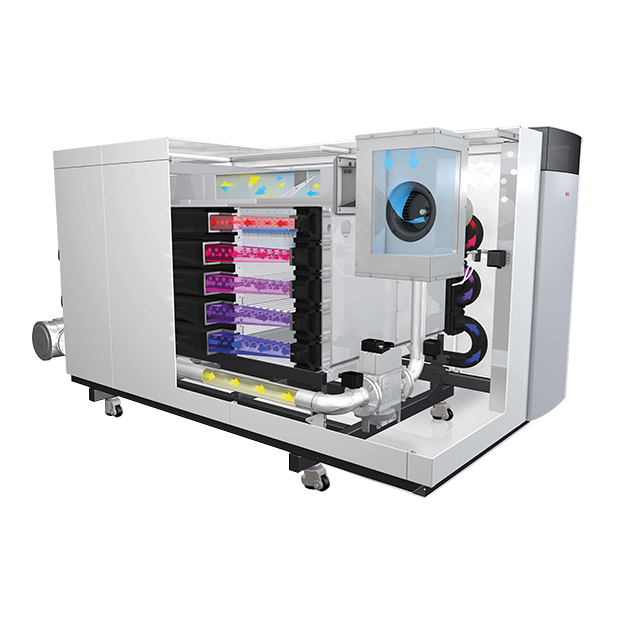

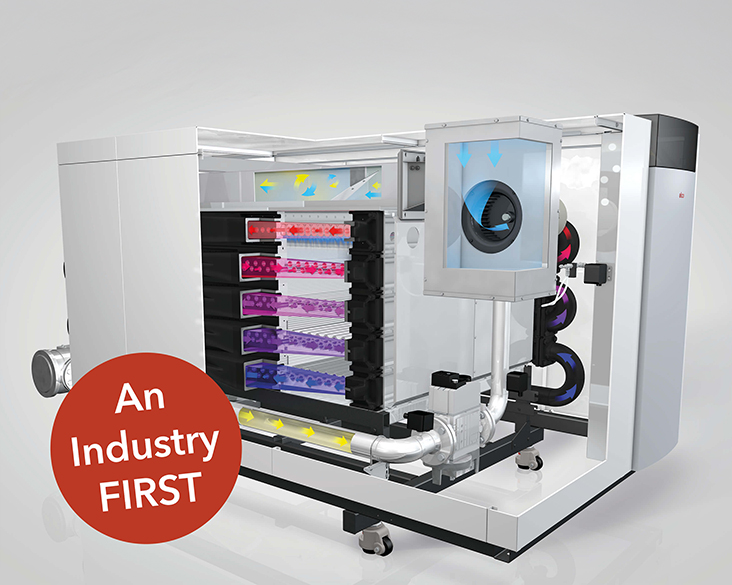

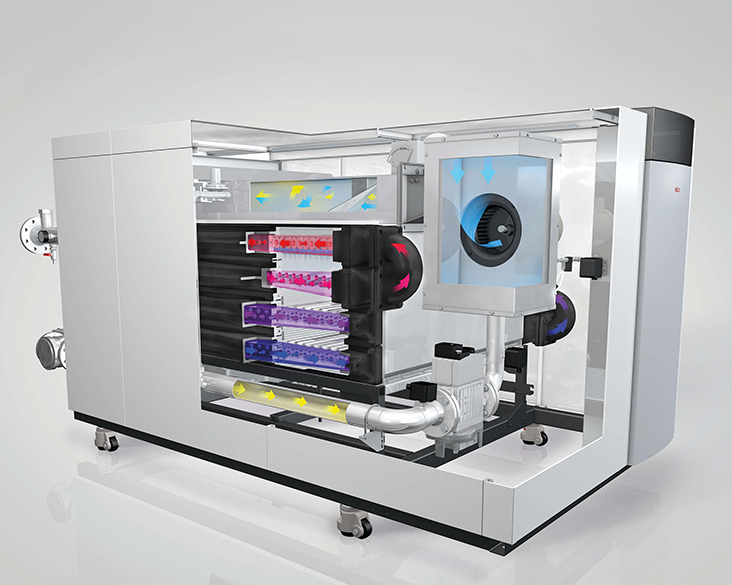

By combining a unique heat exchanger geometry and a water-cooled cold flame burner, the TRIGON® XXL offers class-leading performance for low NOx and CO.

Modular construction

Modular construction

ELCO’s renowned modular design construction allows the TRIGON® XXL to be disassembled into components parts – providing flexibility when siting the boilers in a commercial property.

Comprehensive control features

Comprehensive control features

Designed for simple system integration, the TRIGON® XXL can operate alongside multiple energy sources, while a master-slave cascade function makes commissioning easy.

Easy transportation and installation

Easy transportation and installation

Integral cargo wheels allow all models to be easily manoeuvred on site.
