TRIGON XXL

TRIGON® XXL

Condensing Boilers
Outputs from 700 kW to 2000 kW

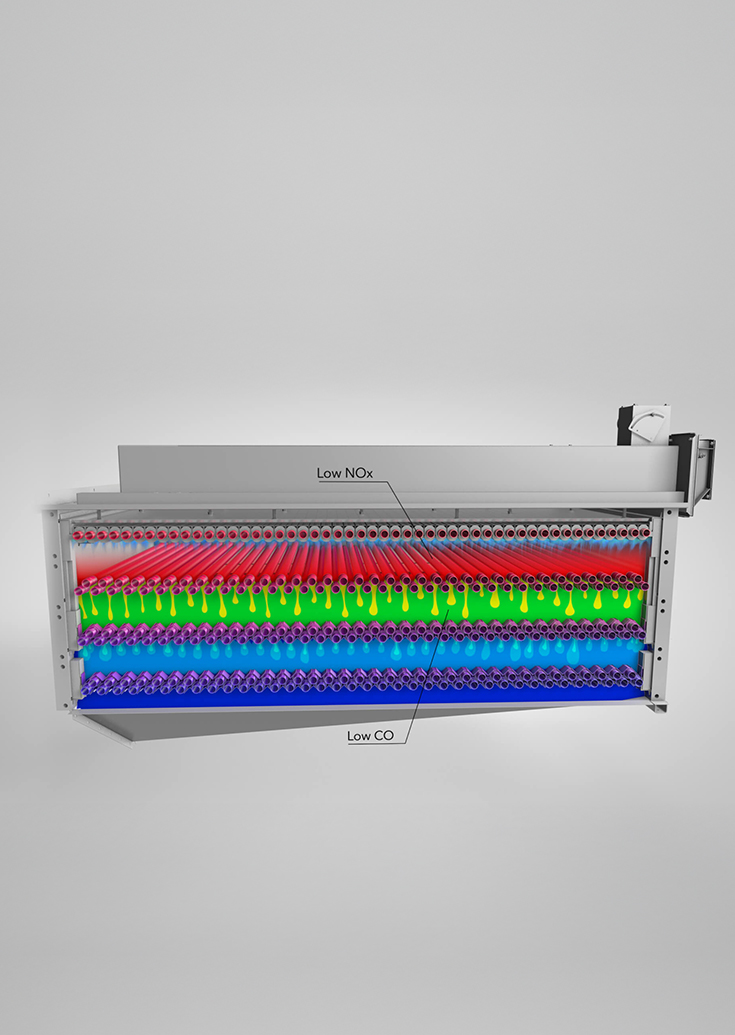

The TRIGON® XXL offers unrivalled power and performance, delivering outputs up to 2 MW, thanks to a one-of-a-kind boiler design. By combining a unique heat exchanger geometry and a water-cooled cold flame burner, the TRIGON® XXL delivers class-leading performance for low NOx and CO. ELCO’s renowned modular design construction allows the TRIGON® XXL to be disassembled into components parts – providing flexibility when siting the boilers in a commercial property.

TRIGON XXL	700	800	900	1000	1100	1200	1400	1550	1700	2000
Output min. - max. 50/30°C [kW]	202 - 676	236 - 791	267 - 896	298 - 1001	330 - 1104	360 - 1208	412 - 1381	463 - 1553	515 - 1726	541 - 2069
Sound power level (EN 12102)	69	69	69	69	69	69	69	69	69	73
Dimensions H x W x D	1555 x 1370 x 2185	1555 x 1170 x 2565	1555 x 1170 x 2565	1555 x 1370 x 2565	1555 x 1370 x 2565	1555 x 1570 x 2795	1575 x 1370 x 3310	1575 x 1570 x 3310	1575 x 1570 x 3310	1665 x 1570 x 3310
Weight	1136	1328	1468	1634	1800	1900	2000	2100	2201	2500

TRIGON XXL

700

800

900

1000

1100

1200

1400

1550

1700

2000

Output min. - max. 50/30°C [kW]

202 - 676

236 - 791

267 - 896

298 - 1001

330 - 1104

360 - 1208

412 - 1381

463 - 1553

515 - 1726

541 - 2069

Sound power level (EN 12102)

Dimensions H x W x D

1555 x 1370 x 2185

1555 x 1170 x 2565

1555 x 1370 x 2565

1555 x 1570 x 2795

1575 x 1370 x 3310

1575 x 1570 x 3310

1665 x 1570 x 3310

Weight

1136

1328

1468

1634

1800

1900

2000

2100

2201

2500

Technical

TRIGON® XXL

TRIGON® XXL

Results

Certificate kiwa TRIGON XXL

Instruction manual TRIGON XXL

Technical submissions Trigon XXL ECO 1050

Technical submissions Trigon XXL ECO 1150

Technical submissions Trigon XXL ECO 1300

Technical submissions Trigon XXL ECO 1450

Technical submissions Trigon XXL ECO 1600

Technical submissions Trigon XXL ECO 650

Technical submissions Trigon XXL ECO 750

Technical submissions Trigon XXL ECO 850

Technical submissions Trigon XXL ECO 950

Technical submissions Trigon XXL EVO 1000

Technical submissions Trigon XXL EVO 1100

Technical submissions Trigon XXL EVO 1200

Technical submissions Trigon XXL EVO 1400

Technical submissions Trigon XXL EVO 1550

Technical submissions Trigon XXL EVO 1700

Technical submissions Trigon XXL EVO 2000

Technical submissions Trigon XXL EVO 700

Technical submissions Trigon XXL EVO 800

Technical submissions Trigon XXL EVO 900

2-TRIGON-XXL-1-CHP-2-Buffers-PHE-1-VT-Heating-Circuit-and-1-DHW-Calorifier-1
